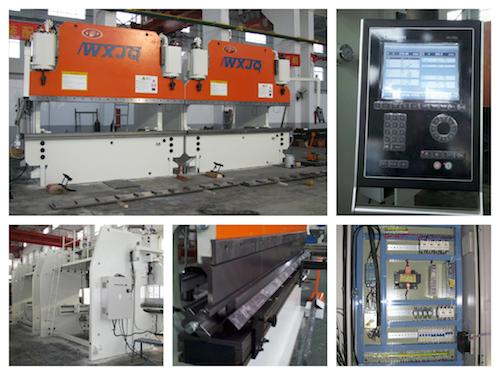

Light Pole Tandem Press brake machine 600T

CNC Heavy Duty Tandem Press brake machine 600T

For high mast pole, thickness up to 18mm mild steel plate, we can use Light pole Tandem Press brake machine 600T. We already exported to Algeria, Philipines, India, America, Malasia and other countries. CNC tandem sheet bending press is very common in china market. China market most use Q235 for pole forming. while some other countries like USA, are using Q345 structure steel for pole. CNC electric-hydraulic synchro machine can work together for long workpiece, also can separately for shorter job. It is the best solution for long parts fabrication factories. All important components are with world famous brand.

ASK PRICE

TECHNICAL FEATURES

  • Light Pole Tandem Press brake machine are controlled by CNC synchronizing system. All machines Y1, Y2 value will transfer from slave CNC to master CNC. Master CNC will calculate and send command to control each unit hydraulic press brake;
  • Normally each unit of Heavy Duty Tandem Press brake machine has same technical parameters. So that we can synchronize the machines easily. While we also can make different parameters machines to be tandem machine by CNC controller.
  • Each unit of Light pole tandem press brake is Electric – hydraulic synchronized design; European CNC controller, with full CNC controlled Y1, Y2, calculation based on material and tool library;
  • Automatic bending procedure optimisation by CNC controller, engineer can adjust the steps according to actual design;
  • Y1, Y2 is measured with high accurate optic scalars. Measured signal will be feedback to CNC controller timely.
  • European proportion valves will control left and right cylinder’s movement according to controller’s command.
  • For tandem press brake, we can apply multi axes back gauge. All the machines can work together to finish all work pieces. Also can separately work as single machine.
  • Ram guide is with low friction Polymer wear-resistant materials, which will give long accurate working life;we67k-600t Light pole  tandem press brake machine
  • Working table is with automatic crowning system. Hydraulic type is for up to 200T-3.2m machines, while wedge structure is applied for bigger machines.
  • For bending force up to 200T, quick clamp for punch is applied. It will be easy handle the up tooling. The clamp has wedge crowning adjust system.
  • Low noise and high efficient gear pump is standard configuration;
  • Ram is with Anti-tilt device for machine protection;
  • Heavy Duty Tandem Press brake machine Oil tank is with level and temperature indicator.
Item 2-WE67K-600Ton×6000mm
Nominal force(KN) 2×6000
Worktable length(mm) 2×6000
Distance between frames(mm) 4800
Depth of throat(mm) 1000
Ram Stroke (mm) 250
Max open height(mm) 960
Ram Speed (mm/s) Fast Down 70
Working 7
Return 75
Volume of Oil Tank (L) 2x1400L
Main power(Kw) 2×45
Weight(KGs) 2×62,000
Overall dimension(L×W×H mm) 2×6260×4500×7300
  1. MAIN COMPONENTS COOPERATORS OF JINQIU HYDRAULIC CNC PRESS BRAKE MACHINE:

    jinqiu hydraulic press brake components

    • DELEM : Netherlands, Was established in 1976, No.1 brand supplier for hydraulic CNC press brake machine and hydraulic shearing machine controller. Controller includes DA52S, DA56S, DA66T, DA58S for press brake machine; DAC310, DAC350 for hydraulic guillotine shears;
    • Rexroth: BOSCH Group is world biggest hydraulic components (valves, pumps) supplier. Our all hydraulic CNC synchronise press brake are with the valves / pumps.
    • NACHI: Japan,  was founded in 1928, world famous brand for high volume, high pressure gear hydraulic pumps. All our hydraulic CNC press brakes over 300T are with NACHI pumps;
    • HEIDENHAIN: Germany, established in 1889. Optic scaler is is most accurate measurement, higher accuracy and stability than other scaler.
    • NOK: Japan, was setup in 1939, biggest Group company making hydraulic seals in Jappan;
    • HIWIN: Taiwan, was setup 1989, leading supplier for transmission system, Includes liner guide and ball screws;
  2. SHEET METAL PRESS BRAKE MACHINE CNC CONTROLLER QUICK LIST:

    DA-52s features

    • Quick, one page programming
    • Hotkey navigation
    • 7” VGA colour TFT
    • Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
    • Crowning control
    • Tool/material/product library
    • USB, peripheral interfacing
    • Advanced Y-axis control algorithms for closed loop  as well as open loop valves

    DA-56s features

    • 2D graphical programming
    • 10,4″ LCD TFT colour display
    • Bend sequence determination
    • Developed length calculation
    • Crowning control
    • USB peripheral interfacing
    • Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.

    DA-66T features

    • 2D graphical touch screen programming mode
    • 3D visualisation in simulation and production
    • 17″ high resolution colour TFT
    • Full Windows application suite
    • Delem Modusys compatibility (module scalability and adaptivity)
    • USB, peripheral interfacing
    • User specific application support within the controllers multitasking environment
    • Sensor bending & correction interface

    ESA S 530 features

    • Graphic color 7” lcd tft display
    • 51 keys ip65 keyboard
    • 4 analog outputs(±10V) with 13bits + sign resolution.
    • 4 digital inputs for the zero micros.
    • 4  analog  inputs,  12  bits  resolution, ranges 0÷10V, 0÷5V.
    • 2 general purposes analog outputs, 0÷10V (8 bits resolution).
    • 1 ethernet port 10/100 Mbit (lan connection)
    • 1 VGA port for external monitor connection
    • 2 USB (2.0) ports.
