Sheet Metal Press Brake CNC Controled 400T

400t cnc hydraulic press brake machine

With improved requirements on sheet metal bending capacity, We started to make bigger CNC Sheet Metal Press Brake from 1980's. 400T sychro bending press machine is equiped with Netherland made CNC controller, Bosch or HOERBIGER Germany made hydraulic system, Japan made hydraulic pump, YASKAWA servo motor. All world-famous components will make machine more stable and stronger in heavy workpiece fabrication. We developed various length machine according to customer's sheet metal bending, 3.2/4/5/6/7 will be selection.

ASK PRICE

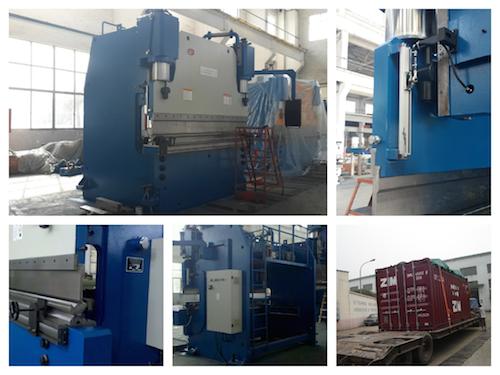

FEATURES OF MACHINE:hydraulic CNC press brake machine 400t
  1. CNC Sheet Metal Press Brake With Stylish design, high rigidity, high speed;
  2. Electro-Hydraulic servo system, Closed loop control system controls accuracy;
  3. Sheet Metal Press Brake Worktable adopts hydraulic deflection compensation to ensure the accuracy of workpiece;
  4. Back gauge is driven by servo motor, adopted ball-screw and linear guide way, it could make sure Sheet Metal Press Brake positioning accuracy
  1. Estimate Bending Force Calculation or Max Bending Thickness for CNC Sheet Metal Press Brake

    Estimate bending force calculation formula is

     P=650*S*S*L/V

    • P:  Estimate Hydraulic press Brake Bending force (T)
    • S:   Plate thickness (mm)
    • L:   Bending Length (m)
    • V:   Hydraulic Press Brake Bottom die V opening width (mm)

    NOTE:

    1. The CNC Sheet Metal Press Brake bending force calculation is based on mild steel (tensile strength = 450Mpa). For other material, we shall time constant K (related with material tensile strength, hardness, elongation). for example, Stainless plate characters can be different according to plate number. we can set K=1.5.
    2. Normally V (CNC Sheet Metal Press Brake bottom die V opening width) can be 6 ~12 times plate thickness. for thin plate we select smaller V opening. while for bigger and Harder plate, we shall set bigger V opening. Bigger V will introduce bigger bending radius.
  2. CNC Sheet Metal Press Brake Shipment, Unloading, Installation Related Issues
    • The CNC Sheet Metal Press Brake will be loaded over steel rack. During loading / unloading, we shall pull or push only over the steel rack to avoid deforming on machine body frame.
    • On Sheet Metal Press Brake wall frame, there are lifting hook. We shall use enough length steel wire rope or chain to lift the machine by the hook. We shall be careful to avoid machine drop down;
    • For bigger capacity CNC Sheet Metal Press Brake, the machine height can be close to container door top. when we pull machine out, we shall be careful to avoid damage on machine top parts. To protect the parts, we may remove hydraulic valve, motor or other components on top. Please reinstall the parts according our guide.
    • The CNC Sheet Metal Press Brake will be fixed by chain or steel wires inside the container, covered with plastic film to avoid moisture during ocean shipment.
    • When receive the CNC Sheet Metal Press Brake, Customer shall remove the steel rack under the machine, prepare foundation for the machine. Good fix and levelling will make machine work longer and accurate.
  3. MAIN COMPONENTS COOPERATORS OF JINQIU HYDRAULIC CNC PRESS BRAKE MACHINE:

    jinqiu hydraulic press brake components

    • DELEM : Netherlands, Was established in 1976, No.1 brand supplier for hydraulic CNC press brake machine and hydraulic shearing machine controller. Controller includes DA52S, DA56S, DA66T, DA58S for press brake machine; DAC310, DAC350 for hydraulic guillotine shears;
    • Rexroth: BOSCH Group is world biggest hydraulic components (valves, pumps) supplier. Our all hydraulic CNC synchronise press brake are with the valves / pumps.
    • NACHI: Japan,  was founded in 1928, world famous brand for high volume, high pressure gear hydraulic pumps. All our hydraulic CNC press brakes over 300T are with NACHI pumps;
    • HEIDENHAIN: Germany, established in 1889. Optic scaler is is most accurate measurement, higher accuracy and stability than other scaler.
    • NOK: Japan, was setup in 1939, biggest Group company making hydraulic seals in Jappan;
    • HIWIN: Taiwan, was setup 1989, leading supplier for transmission system, Includes liner guide and ball screws;
  4. SHEET METAL PRESS BRAKE MACHINE CNC CONTROLLER QUICK LIST:

    DA-52s features

    • Quick, one page programming
    • Hotkey navigation
    • 7” VGA colour TFT
    • Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
    • Crowning control
    • Tool/material/product library
    • USB, peripheral interfacing
    • Advanced Y-axis control algorithms for closed loop  as well as open loop valves

    DA-56s features

    • 2D graphical programming
    • 10,4″ LCD TFT colour display
    • Bend sequence determination
    • Developed length calculation
    • Crowning control
    • USB peripheral interfacing
    • Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.

    DA-66T features

    • 2D graphical touch screen programming mode
    • 3D visualisation in simulation and production
    • 17″ high resolution colour TFT
    • Full Windows application suite
    • Delem Modusys compatibility (module scalability and adaptivity)
    • USB, peripheral interfacing
    • User specific application support within the controllers multitasking environment
    • Sensor bending & correction interface

    ESA S 530 features

    • Graphic color 7” lcd tft display
    • 51 keys ip65 keyboard
    • 4 analog outputs(±10V) with 13bits + sign resolution.
    • 4 digital inputs for the zero micros.
    • 4  analog  inputs,  12  bits  resolution, ranges 0÷10V, 0÷5V.
    • 2 general purposes analog outputs, 0÷10V (8 bits resolution).
    • 1 ethernet port 10/100 Mbit (lan connection)
    • 1 VGA port for external monitor connection
    • 2 USB (2.0) ports.
Item WE67K-400Ton ×3200mm WE67K-400Ton ×4000mm WE67K-400Ton ×5000mm WE67K-400Ton ×6000mm
Nominal force(KN) 3200 3200 3200 3200
Worktable length(mm) 3200 4000 5000 6000
Distance between holes(mm) 2650 3100 4000 4800
Depth of throat(mm) 500 500 500 500
Ram Stroke (mm) 320 320 320 320
Max open height(mm) 660 660 660 660
Ram Speed (mm/s) Fast Down 60 60 60 60
Working 7 7 7 7
Return 60 60 60 60
Volume of Oil Tank (L) 600L 720L 970L 1200L
Main power(Kw) 30 30 30 30
Weight(KGs) 22,500 24,800 29,500 36,500
Overall dimension(L×W×H mm) 3600×3280×3600 4250×3280×3650 5250×3280×4600 6250×3280×5300



No.
Name
Manufacture
1
CNC System DELEM DA-52S
2
Valve block for pressure BOSCH Rexroth
3
Valve block for synchronization BOSCH Rexroth
4
Main sealers in cylinder NOK or SKF
5
Gear Pump BOSCH
6
Linear Scale HEIDENHAIN
7
Servo Motor YASKAWA
8
Main electric components Schneider
